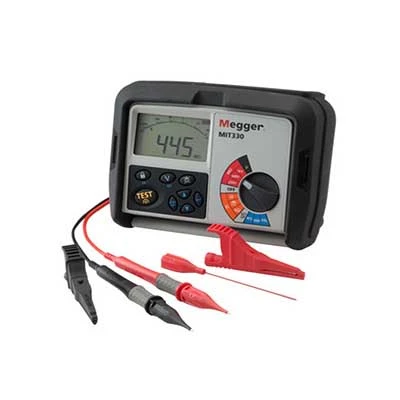

Megger Insulation and Continuity Testers
- The Megger 999 Mohm, 200mA insulation and continuity tester is not only durable and easy to use but also incorporates a comprehensive set of features designed to ensure operator safety, even under conditions of accidental misuse.
- It includes automatic discharge of the circuit after the testing, audible and visual warning if the test probes are applied to a live circuit and a test inhibit feature, which operates automatically under live circuit conditions.
- This device has rugged construction with an impact-resistant rubber-over moulded case and innovative circuitry, which guarantees high accuracy, combined with the stability of calibration.
Features And Benefits
- 250V to 1000V test voltage
- Extremely easy to use
- Tough rubber armoured case
- Self-contained protective cover
- Live circuit warning
- Intelligent safety system for protection
- Backlit display, illuminated range panel, insulation limit alarm, resistance measurement and an adjustable threshold for the continuity buzzer
Applications
- Domestic sites
- Commercial sites
- Industrial sites
Certifications
- BS7671
- IP54 rated
- IEC61010-1
Color: Black
Weight(KG): 1.000
- Tester Type: Insulation & Continuity Tester
- Minimum Test Voltage: 250V
- Maximum Test Voltage: 1000V dc
- Maximum Insulation Resistance Measurement: 999MΩ
- Display Type: LCD
- Test Current: 1mA
- Battery Life: 5000 5-Second Tests
- Minimum Operating Temperature: -10°C
- Maximum Operating Temperature: +60°C
- Power Source: Battery
- Safety Category Level: CAT III
- Safety Category Voltage: 600V
- Safety Category: CAT III 600V
- Battery Type: AA
- Plug Type: Type A – North American/Japanese 2-blade, Type F – Schuko plug, Type G – British 3-pin, Type I – Australian plug, Type J – Swiss 3-pin
- Length: 203mm
- Weight: 980g
- Model Number: MIT310
- Width: 148mm
- Dimensions: 203 x 148 x 78mm
- Height: 78mm
