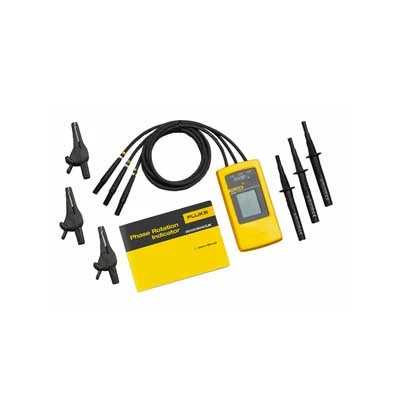

- FLUKE 9040 Phase Rotation Indicator
- The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems.
- The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections.
- It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications.
- The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Color: Yellow
Weight(KG): 0.200
| Voltage Range | 40-700 V |
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Environmental Specifications | Â |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Safety Specifications | Â |
| Electrical Safety | EN 61010, |
| Â | EN 61557-7 |
| OverVoltage category | CAT III, 600 V |
| Â | CAT IV, 300V |
| Mechanical and General Specifications | Â |
| Size | 124 x 61 x 27 mm |
| Weight | 200 g |
| Power supply | From unit under test |
